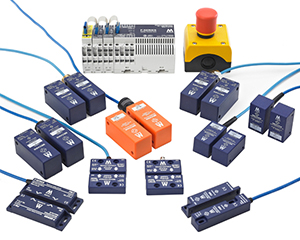

F-Series Safety Switches
• CAT 4 SIL 3 PL-E safety system
• Modular control unit
• Fully electronic safety switches
• Monitor up to 30 switches / e'stops
• Unique code safety switches (EN 14119 high code)

The F-SERIES, is the latest version of Mechan's unique electronic safety system which now has a record of over 40 YEARS reliability in all types of industrial applications.

The DIN rail mounting safety control unit can monitor up to 30 Mechan safety switches and/or emergency stop buttons in one system. The electronic non-contact safety switches are fully encapsulated, easy to install and tolerant to misalignment.

Together the switches and control module provide a safety system capable of meeting the requirements CAT 4 SIL 3 PL-e, and can be used in the harshest environments, providing long term reliability.
Thumbnail Image 1

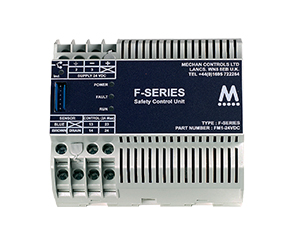

FM1 Safety Control Unit

•   EN 954-1 Category 4
•   Modular system, monitors up to 30 guards
•   Tamper resistant safety switches
•   Indication from each safety switch
•   Simple to install and expand

View Product

Thumbnail Image 1

FX2 Extender Module

•   2 Safety Switch extender module
•   17.5 mm slim-line housing
•   LED indication
•   Volt free contact indication

View Product

Thumbnail Image 1

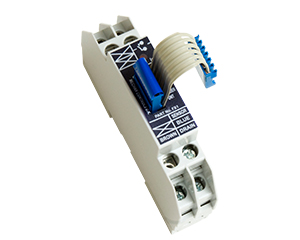

FX1 Extender Module

•   1 Gate safety switch extender module
•   17.5 mm slim-line housing
•   LED indication
•   Volt free contact indication

View Product

Thumbnail Image 1

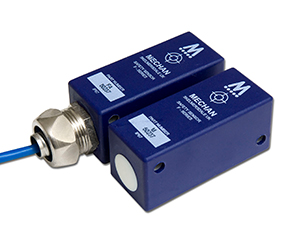

FMA Safety Switch

•   Electronic switching
•   IP67 Safety Switch
•   10 mm Switching distance
•   5, 10 or 15 meter cable pre-wired
•   Extend cable up to 100 meters

View Product

Thumbnail Image 1

FMG Safety Switch

•   Electronic switching
•   IP67 Safety Switch
•   10 mm Switching distance
•   5, 10 or 15 meter cable pre-wired
•   Extend cable up to 100 meters

View Product

Thumbnail Image 1

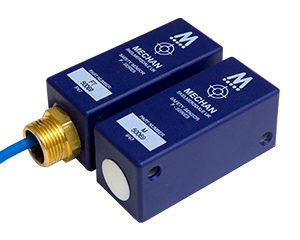

FMT Safety Switch

•   Electronic switching
•   IP67 Safety Switch
•   10 mm Switching distance
•   5, 10 or 15 meter cable pre-wired
•   Extend cable up to 100 meters

View Product

Thumbnail Image 1

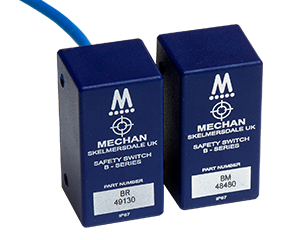

B-Type Safety Switch

•   Electronic switching
•   Small size, IP67 Safety Switch
•   10 mm Switching distance
•   5, 10 or 15 metercable pre-wired
•   Extend cable up to 100 meters

View Product

Thumbnail Image 1

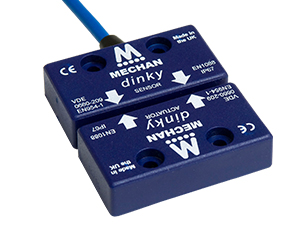

DINKY Safety Switches

•   Electromic switching
•   Miniature, IP67 Safety Switch
•   10 mm Switching distance
•   5, 10 or 15 meter cable pre-wired
•   Extend cable up to 100 meters

View Product
