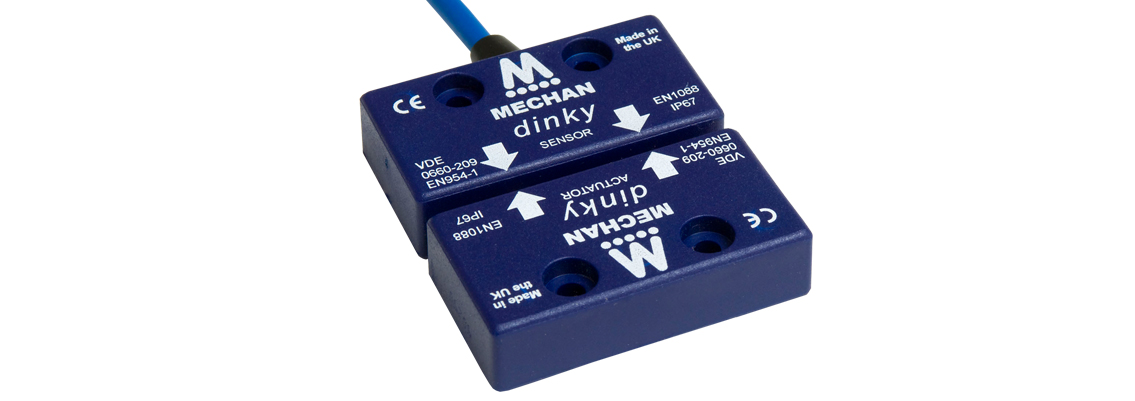

F-Series DINKY Safety Switch



The DINKY safety switch was designed for harsh environments, with the electronic switching encapsulated into an ABS housing. It is immune to water, hot hosing, dust, oil etc. and the small size makes it easy to hide or to use on very small access points. The 8 - 10 mm switching distance means they are tolerant to misalignment and guard wear over a long operational life-span.

This version has the added advantage of a M8 quick disconnect cable with 5 or 15 M cables.


Operation: Electronic
Max. Switches per system: 30
Switching Distance: 8 - 10 mm
Construction: ABS, Resin filled
IP Rating: IP67
Cable Lengths: 5, 10 and 15 M (Max 100 M)
Cable Protection: 20 mm Thread, male brass gland
Features: Compact switch, 10 mm switching, suitable for hinged, lift off or sliding guards
Approvals: TUV Category 4, CE
