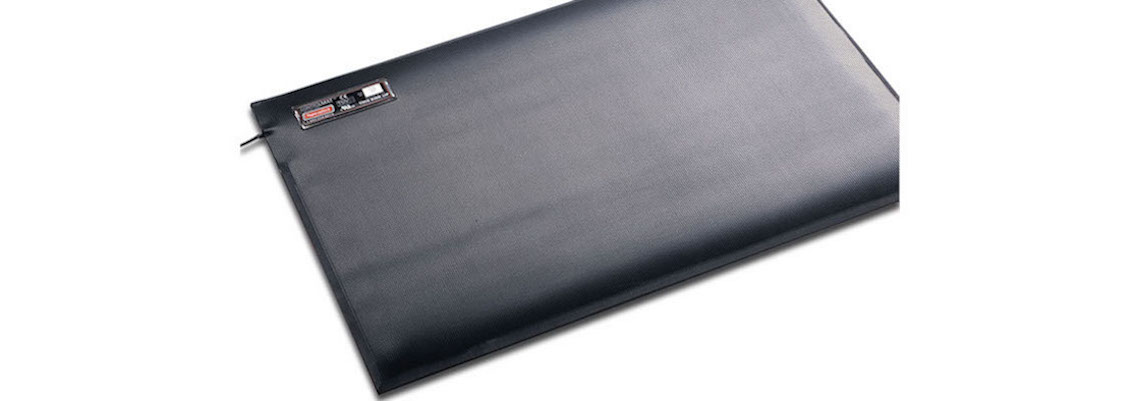

Safety ControlMat™ - Heavy-Duty and Abrasion-Resistant


Tapeswitch™ Controlmat™ Industrial Duty Safety Mats are designed for personnel sensing around dangerous machinery and in hazardous locations. These pressure sensitive switch mats feature press-at-any-point actuation. Many standard sizes are in stock, but custom sizes and shapes are easily manufactured to order with short lead times. Tapeswitch™ Safety Mats can also be made with cut-outs and multiple sensing zones to exactly fit specific application needs.

Field tested for more than twenty-five years, the surface of the Controlmat™ Safety Mat is both moisture and abrasion resistant. Ribbing on the top and bottom surfaces prevents water or oil buildup. The fully-protected switching elements are extremely rugged and reliable, with an operating life of several million cycles.

Controlmat™ safety mats are available with square, ramped or any combination. They are easy to install and must be permanently attached to the floor. For mat edging options, Click Here. All safety mats are supplied with 4-conductor Fail-Safe wiring, and are compatible with Tapeswitch™ Safety Interface Modules.

Note: Mats must be permanently attached to the floor with recommended edging. Click Here For Options

Features
•   Industrial duty, pressure sensitive safety mat for personnel sensing applications
•   Moisture, chemical and abrasion resistant for long life in factory settings
•   Easy installation
•   Switching elements rated for several million cycles ensures long life
•   4-conductor Fail-Safe wiring is standard

Applications
•   Machine operation control
•   Automated assembly line guarding
•   Robot area guarding
•   Automatic door operation
•   Process cycle control
•   General hazardous area guarding

Actuation Force: 22 lbs (100 N) nominal with 3-1/8 in. (80 mm) diameter disc
Recommended Voltage & Current: 24 VAC or VDC at 1 amp max
Environment: IP65 rated, 32 to 122°F (0 to 50°C)
Colors: Black (standard), yellow or blue (optional)
Maximum Size: Up to 48 in x 144 in. single-piece construction
Internal Wiring: Click here for details
Standard Sizes: 24 in. x 24 in. (610 mm x 610 mm)
24 in. x 36 in. (610 mm x 910 mm)
24 in. x 48 in. (610 mm x 1220 mm)
24 in. x 60 in. (610 mm x 1520 mm)
24 in. x 72 in. (610 mm x 1830 mm)
30 in. x 48 in. (762 mm x 1220 mm)
36 in. x 36 in. (910 mm x 910 mm)
36 in. x 48 in. (910 mm x 1220 mm)
36 in. x 60 in. (910 mm x 1520 mm)
36 in. x 72 in. (910 mm x 1830 mm)
48 in. x 72 in. (1220 mm x 1830 mm)

Custom Sizes, shapes and cutouts available by calling our factory direct at 800-234-8273


Quick-Disconnect Option The Controlmat™ Safety Mat is available with a quick-disconnect option, which protects the mat if the leads are tugged on or otherwise overstressed. It also allows for the repair of damaged leads without replacing the entire mat. If the mat itself has to be replaced, the wiring can be left intact while allowing for the simple installation of a replacement unit.

Aluminum Edging Option Tapeswitch™ safety mats can be supplied with a choice of edge styles and are necessary to comply with ANSI requirements. Aluminum edging is used to secure the safety mat to the floor and provide a wire chase for the leads. AE-3 edging also has a safety-yellow edge marking.
