How To Order Safety Mats



CONTROLMAT™ AND ARMORMAT™ SAFETY MATS

1. Specify the mat size.
Single ControlMat™ Safety Mats are available in sizes up to 48 in. x 144 in.
Single ArmorMat™ Safety Mats are available in sizes up to 48 in. x 120 in.
Larger multi-mat configurations are also available.

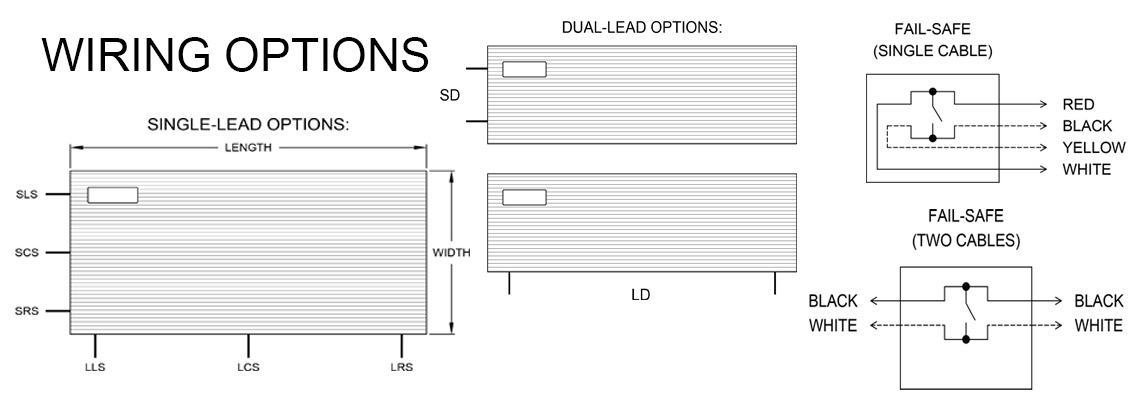

2. Pick a lead exit.
Mats are supplied with one 4-conductor cable.
The lead outlet options are:
LLS - Long side, Left end, Single lead
LRS - Long side, Right end, Single lead
LCS - Long side, Center, Single lead
SLS - Short side, Left end, Single lead
SRS - Short side, Right end, Single lead
SCS - Short side, Center, Single Lead
SD - Short side, Dual lead
LD - Long side, Dual Lead
Special lead exits are also available.

3. Pick a mat color.
Color choices are: Black, Yellow, and Blue.

4. Pick an edge treatment.
Choices are ramped (standard), square or combination of both.

5. Pick aluminum edging (trim), if required.
For ramped mats, use AE-1.
For square-edge mats, use AE-2 or AE-3.

6. Pick a Fail-Safe interface controller, if required.
Choose a PRSU, MZ or PSSR model for high-risk applications.


DIAMOND PLATE SAFETY MATS

1. Specify the active area required.
Diamond Plate Safety Mats have 3.5 in. trim on each edge, which is inactive.

2. Pick a lead exit.
Mats are supplied with one 4-conductor cable. See the diagram above for options.

3. Pick a Fail-Safe interface controller, if required
Choose a PRSU or PSSU model for high-risk applications.


SAFETY ZONE SENSING MATS

1. Specify the mat size.
Safety Zone Sensing Mats are available in sizes up to 40 in. x 60 in.. Custom sizes are available.

2. Specify the mat surface.
Choices are: ribbed, eurodot, and smooth.

3. Pick a mat color.
Color choices are: Black or yellow. Custom colors are available.

4. Pick an edge treatment
Choices are: ramped or square.

5. Pick aluminum edging (trim), if required.
For ramped mats, use AE-1.
For square-edge mats, use AE-2 or AE-3.

Choose a PRSU, MZ or PSSR model for high-risk applications.
Note: Standard lead location is mid-point on short side. Other locations optional.


COMFORT ZONE SAFETY MATS

1. Specify the mat size.
Comfort Zone Safety Mats are available in sizes up to 40 in. x 60 in.

2. Pick a lead exit.
Mats are supplied with one 4-conductor cable. See the diagram above for options.

3. Pick a Fail-Safe interface controller, if required.
Choose a PRSU, MZ or PSSR model for high-risk applications.
Note: Mat has black sensing surface with ramped, yellow edge.
