NexGen™

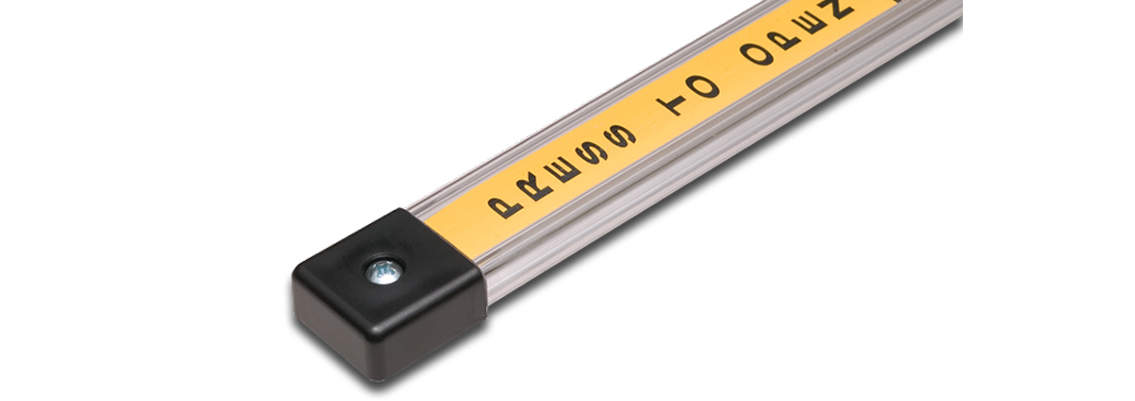

The NexGen™ Switch is a momentary-open, momentary-contact, press-at-any-point linear switch which is enclosed in a rugged Lexan housing. It is designed for situations where switch size, visibility, and ease of operation are important, or where switch damage through abuse or vandalism is a problem. The construction of the switch withstands being, kicked, hit, or kneed to operate. Ideally suited for Americans with Disabilities Act applications, it is available in standard lengths up to 72 inches.

The NexGen™Switch is widely used in environments that can be very abusive to standard switches. Examples are buses, subway cars, and other transit vehicles, as well as manufacturing plants and other industrial settings.

Features

Clear, impact-resistant cover to:
•   Survive rough or abusive use
•   Resist vandalism or tampering
•   Protect internal labels

Custom color, graphics, and labels to:
•   Match equipment or area color schemes
•   Provide operating instructions

Meets requirements for ADA applications. Custom inserts can be added to match color, graphics and instructional text.

Applications
•   Passenger signaling
•   Door operation for physically challenged
•   Podium or stage signaling
•   Movable shelving or partition operation



WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov

Actuation Force: 5 lbs. (22 N) nominal
Recommended Voltage & Current: 24 VAC or VDC at 1 amp maximum
Options: Colored inserts, graphics, or text
