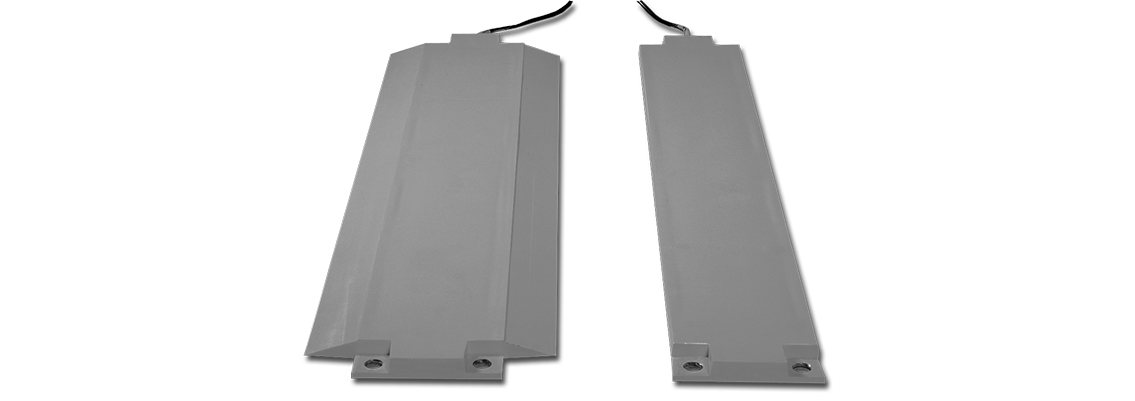

Tapeswitch™ Car Wash Vehicle Sensing Switches are designed to detect the downward or angular pressure of an automobile tire in the harsh environment of vehicle wash down systems. These vehicle detection sensors are molded from 100% PVC Plastisol and features anti-wicking Dri-Run cable, which provides exceptional protection from moisture intrusion through the electrical lead wires. The Car Wash Vehicle Sensing Switch has a moisture rating of IP67.
Many standard sizes are in stock, but custom sizes and shapes are easily manufactured to order with short lead times. Vehicle detection sensors can also be made with cut-outs and multiple sensing zones to exactly fit specific application requirements.
Features
• Heavy duty steel base plate provides solid mounting points
• Edge options allow a choice of recessed or surface mounting
• Dri-Run cabling prevents moisture wicking through the lead wires
• Completely immersible, IP67 rated mat ensures a long operating life
WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov
| Actuation Force: | 42 lbs (187 N) nominal |
| Recommended Voltage & Current: | 24 VAC or VDC at 1.0 amps max. |
| Material: | Molded PVC |
| Recommended Voltage & Current: | 24 VAC or VDC at 1 amp max. |
| Standard Color: | Gray or yellow |
| Mounting: | 5/8 in. holes (4) in 3/16 in. thick steel base plate |
| Square Edge Sizes: | |
| 5 in. width (single sensor) | 17, 24, 32, 36, 48 in. lengths |
| 10 in. width (single or dual sensor) | 17, 24, 32, 36, 48 in. lengths |
| Ramped Edge | |
| 9 in. width | 16, 24, 32, 36, 48 in. lengths |
| 14 in. width | 17, 24, 32, 36, 48 in. lengths |
