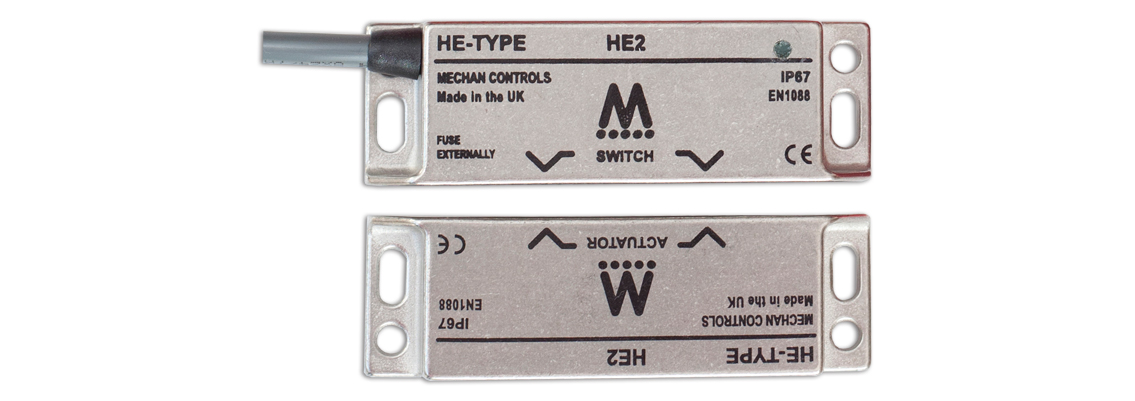

HE2 Series Non-Contact Safety Switch Interlocks



The HE2 Series Non-Contact Safety Switch Interlocks are the larger latest coded magnetic non-contact switches featuring solid state, single point switching for single or multi-gate machine guarding a CAT 4, SIL 3 PLe safety performance level fully encapsulated in either a ABS or stainless steel resin filled housing. The solid state design is even more tolerant to shock and vibration, and provides single point switching which makes for a simpler and more reliable machine guard interlock. The HE safety switch has 2 x N/O + 1 N/C bi-directional solid state outputs along with built in LED(s) for indication.


Operation: Coded Non-contact
Contact Arrangements: 2 x N/O + 1 x N/C
Safety Contact Operating Distance: 7 mm ON / 12 mm OFF
Safety Contact Rating: DC: 24 Vdc / 400 mA
Auxiliary Contact Rating: DC: 24 Vdc / 400 mA
External Fusing ( When not using SCU-1 ): 400 mA
IP Rating: IP67
Cable Length: 100 Meters max
Operating temperature: -25°C to +55°C
Storage temperature: -25°C to +55°C
Mounting: Target to target
Construction: Red ABS Resin Filled or 316 Grade Stainless Steel resin Filled
