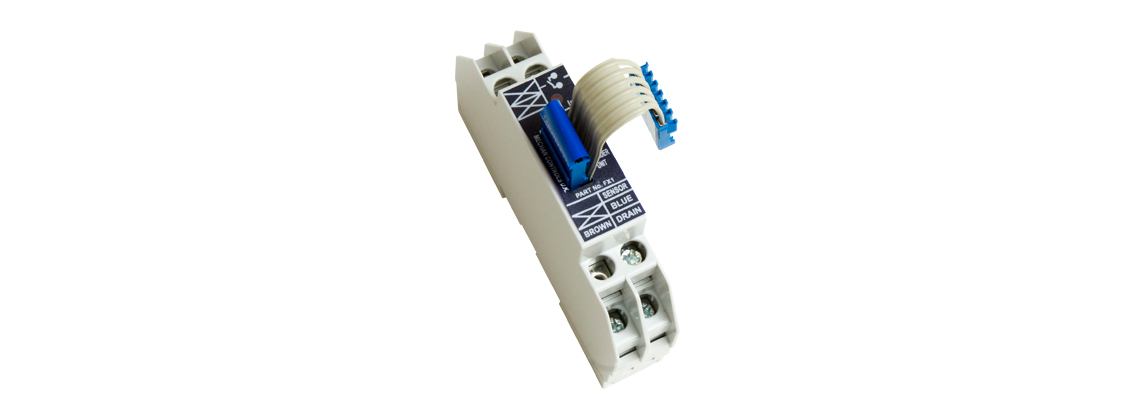

The FX1 and FX2 are 17.5 mm wide Extender Modules that clip onto 35 mm DIN rail. Connecting via a 6-way strap to the control module, the FX1 adds 1 safety switch and the FX2 adds 2 safety switch inputs to the Safety Control Unit.
Each safety switch input has a LED and Volt Free contact indicator output.
| Control Category: | EN 954 CAT 4, SIL 3, PL-e |
| Safety Switch Inputs: | 1 (FX1), 2 (FX2) |
| Power Consumption: | 40 mA |
| Indication: | 2 x Gate Status LED's + Volt Free Contacts |
| Dimensions: | 17.5 x 90 x 58 mm |
| Mounting: | 35 mm DIN Rail |
| IP Rating: | Housing IP40; Terminals IP20 |
| Approvals: | TUV Category 4, CE |
