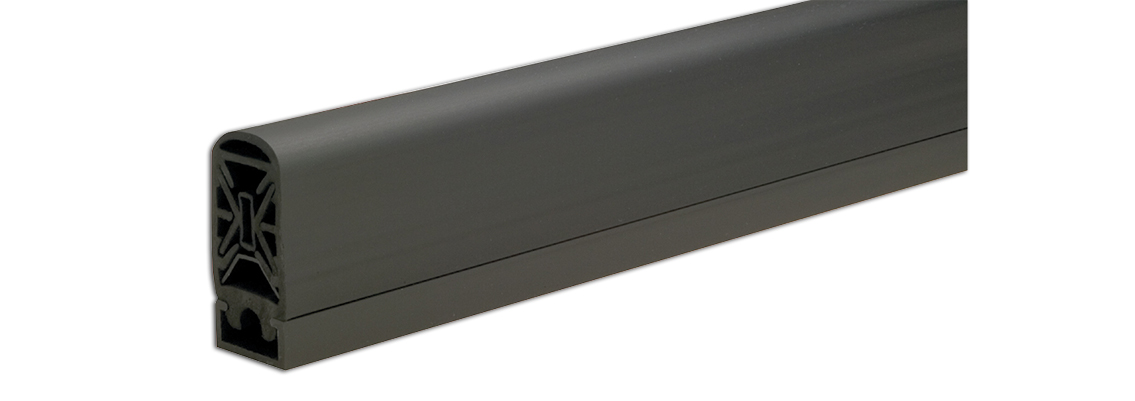

TS-67 Omni-Directional Sensing Edges


Tapeswitch™ TS-67 Omni-Directional Sensing Edges are unique, dual-switch products that exhibit uniform high sensitivity when deflected in any direction – top, side, or at an angle. After actuation, these pressure sensitive safety edges provide 1 inch of protective overtravel cushioning. Mounting is by means of snap-in PVC channel. The internal switching elements are rated for millions of operations across surface.

Originally designed for the specialized requirements of revolving doors, TS-67 pressure sensitive sensing edges are suitable for any application requiring a highly sensitive and flexible edge. They are especially appropriate when the direction of impact varies. TS-67 pressure sensitive safety edges are supplied with 4-conductor Fail-Safe wiring and are compatible with Tapeswitch™ Safety Interface Modules.

Features & Benefits
•   Dual-switch design for activation in many directions
•   Fast to acting top activation with intermediate side activation
•   Immediate activation provides maximum protection
•   1 inch of overtravel for cushioning after contact with a person or object
•   4-conductor Fail-Safe wiring is standard

Typical Applications
•   Powered revolving doors or gates
•   Swinging doors on machinery
•   Fast-moving powered closures
•   Impact protection on moving machinery
•   Pinch protection on sliding surfaces
•   Applications requiring multi-directional sensing



WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov

Actuation Force: 60 N (215.8 oz.) nominal (Tested with 80 mm disk)
Overtravel: 1.0 in. (25 mm) after activation
Overall Height: 3.00 in. (76.2 mm)
Recommended Voltage & Current: 28 VAC or VDC at 1.0 amps max.
Lead Wiring: 2 x 20/2 AWG, Dri-Run, 72 in. long, 316 in. dia.
Exterior Housing: Santoprene TPE
Available Lengths: 6 in. to 9 ft.
Mounting Options: PVC snap-in channel
Color Options: Black
