TS-57 Sensing Edges

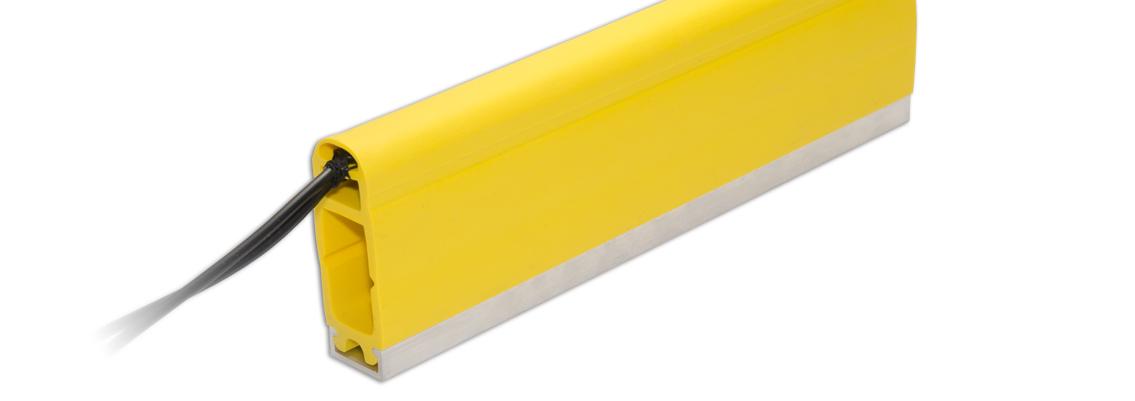

Tapeswitch™ TS-57 Sensing Edges are designed for powered doors and other applications requiring the most sensitive switching and the fastest activation. Mounting is by means of snap-in channel that is available in three configurations: flat (aluminum or PVC) and with a straight or right-angle flange (aluminum only).

The Santoprene TPE housings of these sensing edges are resistant to water, oil, hydraulic fluids, and coolants. The internal switching elements are rated for millions of operations across surface. All TS-57 pressure-sensitive safety edges are supplied with 4-conductor Fail-Safe wiring and are compatible with Tapeswitch™ Safety Interface Modules.

Features & Benefits
•   High sensitivity with fastest activation
•   Substantial overtravel provides maximum cushioning after activation
•   Specifically designed for powered doors and gates
•   4-conductor Fail-Safe wiring is standard

Typical Applications
•   Obstruction detection on high-speed, gym doors, and moving partitions
•   Side bumpers on AGVs and mobile platforms or machinery
•   General sensing applications requiring fast response and protective cushioning



WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov

Actuation Force: 57 N (205 oz.) nominal (Tested with 80 mm disk)
Overtravel: 1.77 in. (45 mm) after activation
Overall Height: 3.45 in. (82.5 mm)
Recommended Voltage & Current: 28 VAC or VDC at 1.0 amps max.
Lead Wiring: 2 x 20/2 AWG, Dri-Run, 72 in. long, 316 in. dia.
Exterior Housing: Santoprene TPE
Available Lengths: 6 in. to 16 ft.
Mounting Options: Aluminum channel (flat or flanged)
PVC channel (flat only)
Color Options: Black, Red & Yellow
