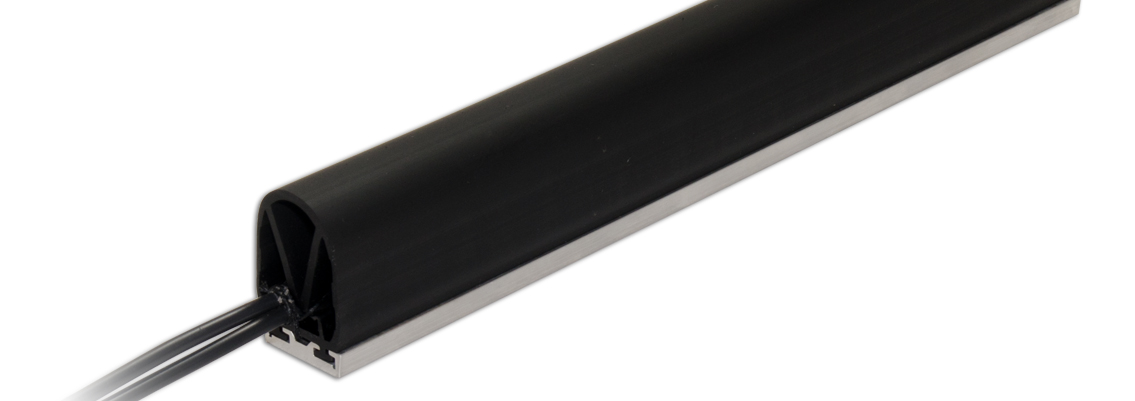

TS-46 Sensing Edges

Tapeswitch™ TS-46 Sensing Edges are general purpose, medium profile, pressure sensitive safety edges. They have some compliance before activation, eliminating nuisance tripping, and provide about ¾ inch of overtravel cushioning after activation. Mounting is in crimpable aluminum channel (flat or angle), which is more tamper-resistant than snap-in channel.

The Santoprene TPE housing is resistant to water, oil, hydraulic fluids, and coolants. The internal switching element is rated for millions of operations across surface. All TS-46 Pressure Sensitive Sensing Edges are supplied with 4-conductor Fail-Safe wiring and are compatible with Tapeswitch™ Safety Interface Modules.

Features & Benefits
• Compliance before activation eliminates nuisance tripping
• ¾ inch over travel provides cushioning after activation
• 4-conductor Fail-Safe wiring is standard

Typical Applications
• Obstruction detection on power operated doors, gates, and stage lifts
• Collision detection on moving conveyors or platforms
• General applications for small sensing bumpers

WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov

Actuation Force: 39 N (140.3 oz.) nominal (Tested with 80 mm disk)
Overtravel: 0.75 in. (19 mm) after activation
Overall Height: 1.97 in. (49.9 mm)
Recommended Voltage & Current: 28 VAC or VDC at 1.0 amps max.
Lead Wiring: 2 x 20/2 AWG, Dri-Run, 72 in. long, 316 in. dia.
Exterior Housing: Santoprene TPE
Available Lengths: 6 in. to 16 ft.
Mounting Options: Aluminum crimpable channel (flat or angle)
Color Options: Black, Red & Yellow
