How To Order Pressure Sensitive Sensing Edges


Step-by-step guide to the ordering process

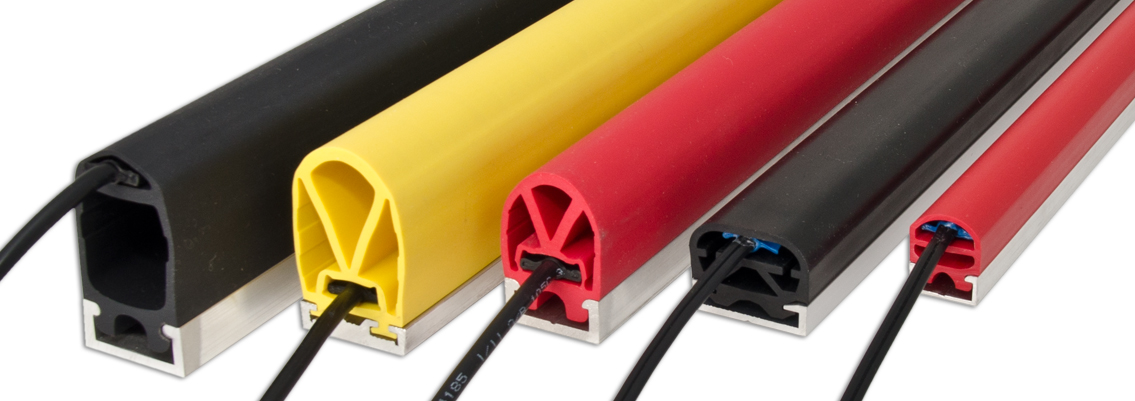

When ordering a Tapeswitch sensing edge, you need to specify the following items:

1. Product model number
2. Sensing edge color
3. Sensing edge length
4. Mounting channel type
5. Lead style (Fail-Safe or single lead)
6. Lead exit location
7. End caps (optional)
8. Quick disconnect (optional)

Use the lead illustration above and the table below to generate a product description as shown in the following examples.

(Note: For item 5 above (lead style), use F/S for fail-safe and S/L for single lead.

Example 1:
For a TS-26 edge, in red, that is 12 feet long and mounted in aluminum flat channel, has Fail-Safe leads with leads out both ends, the description code would be as follows:

TS-26, R, 12 feet, AF, F/S, EE

Example 2:
For a TS-46 edge, in black, that is 10 feet long and mounted in aluminum angle channel, has fail-safe leads with leads out the right-hand end (select left or right hand style with angle channel) with a quick disconnect, the description code would be as follows:

TS-46, B, 10 feet, AA, F/S, RH, Quick Disconnect

Product Colors Lengths Standard
Lead Exit
Standard
Lead Wire
Channel Options End Caps
TS-3 B - Black
R - Red
Y - Yellow
6 inches - 120 inches EE - Each End 22/2 AWG
18 inches long
AF - Aluminum Flat N/A
TS-6 B - Black
R - Red
Yellow
6 inches - 192 inches OE - One End 22/2 AWG
18 inches long
AF - Aluminum Flat
AA - Aluminum Angle
PF - PVC Flat
AS - Aluminum Flange*
Available
TS-16 B - Black
R - Red
Y - Yellow
6 inches - 192 inches OE - One End 22/2 AWG
18 inches long
AF - Aluminum Flat
AA - Aluminum Angle
PF - PVC Flat
AS - Aluminum Flange*
Available
TS-8 B - Black 6 inches - 192 inches EE - Each End 22/2 AWG
18 inches long
AF - Aluminum Flat Available
TS-18 B - Black 6 inches - 192 inches EE - Each End 22/2 AWG
18 inches long
AF - Aluminum Flat Available
TS26 B - Black
R - Red
Y - Yellow
6 inches - 192 inches OE - One End 20/2 AWG Dri-Run
72 inches long x 3/16 inches dia.
AF - Aluminum Flat
AA - Aluminum Angle*
PF - PVC Flat
Available
TS-26T R - Red 6 inches - 192 inches OE - One End 20/2 AWG Dri-Run
72 inches long x 3/16 inches dia.
Not required N/A
TS-46 B - Black
R - Red
Y - Yellow
6 inches - 192 inches OE - One End 20/2 AWG Dri-Run
72 inches long x 3/16 inches dia.
AF - Aluminum Flat
AA - Aluminum Angle*
Available
TS-47 B - Black
R - Red
6 inches - 192 inches OE - One End 20/2 AWG Dri-Run
72 inches long x 3/16 inches dia.
AF - Aluminum Flat
AA - Aluminum Angle*
AS - Aluminum Flange*
PF - PVC Flat
Available
TS-57 B - Black
R - Red
Y - Yellow
6 inches - 192 inchest OE - One End 20/2 AWG Dri-Run
72 inches long x 3/16 inches dia.
AF - Aluminum Flat
AA - Aluminum Angle*
AS - Aluminum Flange*
PF - PVC Flat
Available
TS-48 B - Black
R - Red
Y - Yellow
6 inches - 192 inches OE - One End 20/2 AWG Dri-Run
72 inches long x 3/16 inches dia.
AF - Aluminum Flat
AA - Aluminum Angle*
AS - Aluminum Flange*
PF - PVC Flat
Available
TS-67 B - Black 6 inches - 108 inches OE - One End 20/2 AWG Dri-Run
72 inches long x 3/16 inches dia.
PF - PVC Flat N/A
TS-108 B - Black 6 inches - 120 inches OE - One End 20/2 AWG Dri-Run
72 inches long x 3/16 inches dia.
Not required N/A
TS-109 B - Black 6 inches - 120 inches OE - One End 20/2 AWG Dri-Run
72 inches long x 3/16 inches dia.
Not required N/A

* When using angle or flange channel, specify LH or RH lead exit.
