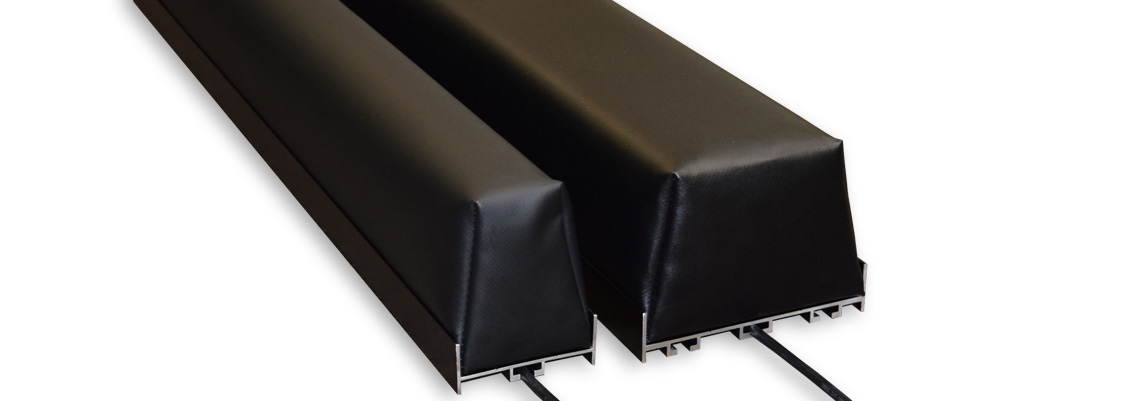

SE-45D & SE-75D Sensing Bumper



Tapeswitch™ SE-45D & SE-75D Sensing Bumpers are designed for general-purpose, heavy-duty applications. They provide a large, compliant surface that protects personnel or equipment by detecting contact or impact before damage is done. Sensitivity is 10 lbs nominal, with substantial overtravel cushioning. These pressure-sensitive bumpers feature easy bolt-on mounting with adjustable bolt locations.

The exterior housing of these sensing bumpers is constructed from Dynalon, which is resistant to water, oil, hydraulic fluids, and coolants. All SE Series pressure-sensitive bumpers are supplied with 4-conductor, Fail-Safe wiring and are compatible with Tapeswitch™ Safety Interface Modules.

Features
•   Large sensing area maximizes the collision zone
•   Less than 10% compliance before activation and 60% over travel cushioning after activation
•   Straight and corner configurations available
•   Available in lengths up to 12 feet
•   4-conductor Fail-Safe wiring is standard

Applications
•   Collision detection on AGVs, mobile work platforms, and material handling vehicles
•   Obstruction detection on large moving doors, mobile work stations, and telescoping conveyors
•   Protection of stationary devices in proximity to moving equipment



WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov

Actuation Force: Less than 10 lbs nominal
Lengths: 1 FT - 12 FT
Recommended Voltage & Current:: 28 VAC or VDC at 1 amp max
Housing: Dynalon
Colors: Black
