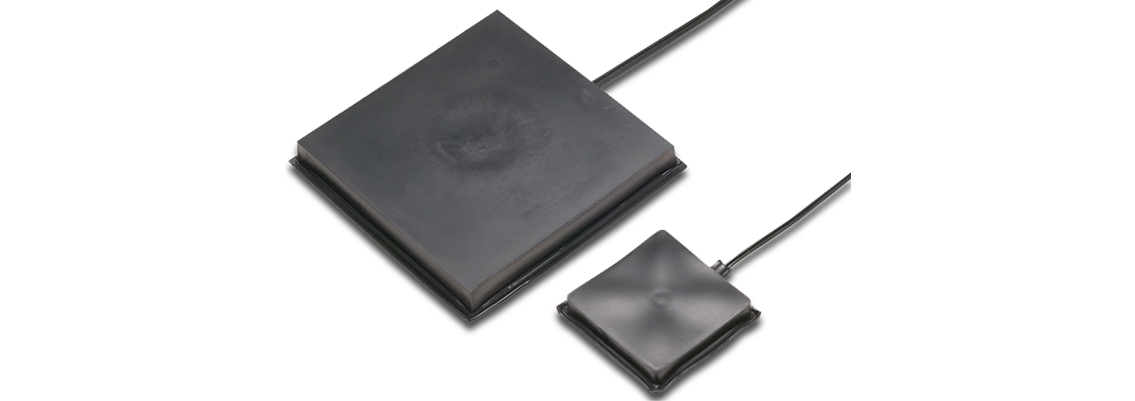

TP-2 & TP-4 Touchpads



The TP Touchpad product line consists of normally-open, press-to-activate switches that are highly water resistant and easily mountable using a frame or adhesive. Custom touchpads are available in black, yellow and with logos, text or graphics.

Features
•   Large active area of 4 or 16 square inches
•   Tolerate high pressure wash downs
•   Rated for outdoor applications
•   Sensitive 5 pound activation force
•   Long life, millions of operations
•   Custom colors, graphics, text, and logos

Applications
•   Machine operation
•   Machine stop switch
•   Wall mounted door switch
•   Handicap access control


Actuation Force: 5 lbs nominal
Exterior Housing: PVC
Standard Sizes: 2 in. x 2 in. (51 mm x 51 mm)
4 in. x 4 in. (102 mm x 102 mm)
Recommended Voltage & Current: 24 VAC or VDC at 1 amp max.
Colors: Black (custom colors available)
