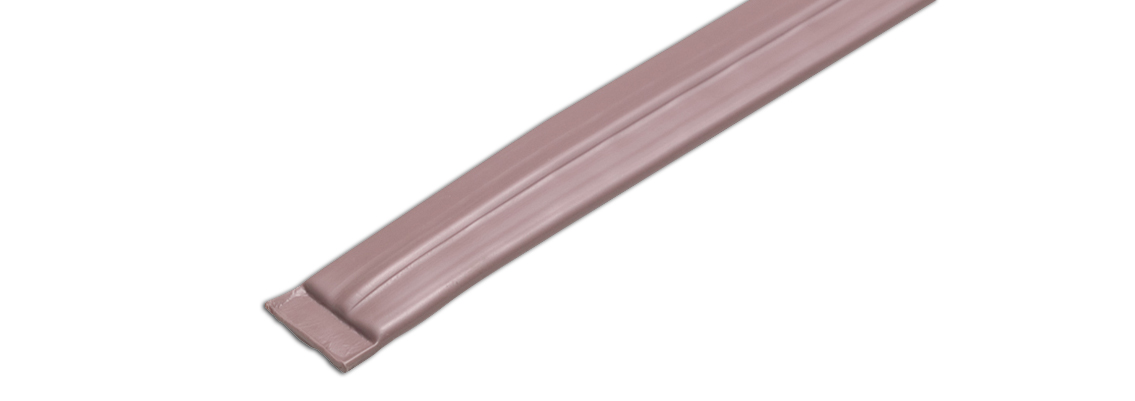

Ribbon Switches Type 191-S (Stainless Steel)


Stainless steel conductor is ideal for some severe environments, including underwater. Cannot be bent sharply.

Actuation force is 12 oz. (3 N). Switch color is beige.

Mounting is by means of double-faced tape. Length is cut to customer requirements.

Options
•   Custom switch lengths
•   Custom lead lengths
•   Fail-Safe leads
•   Air leak test
•   Adhesive backing


Ribbon Switch Type Aluminum Channel DA-32 Double-Faced Tape
191-S No Yes

Actuation Force: 12 oz. (3 N)
Bending Radius: 2 in. (50 mm) minimum
Exterior Covering: PVC
Color: Beige
Lead Wire: #22 AWG, 18 in. (460mm) long
Dimensions: 9/16 in. wide, 3/16 in. high (14.3 mm x 4.8 mm)
Recommended Voltage & Current: 24 VAC or VDC at 1 amp max.
Dielectric Resistance: 1000 VAC for 2 minutes
