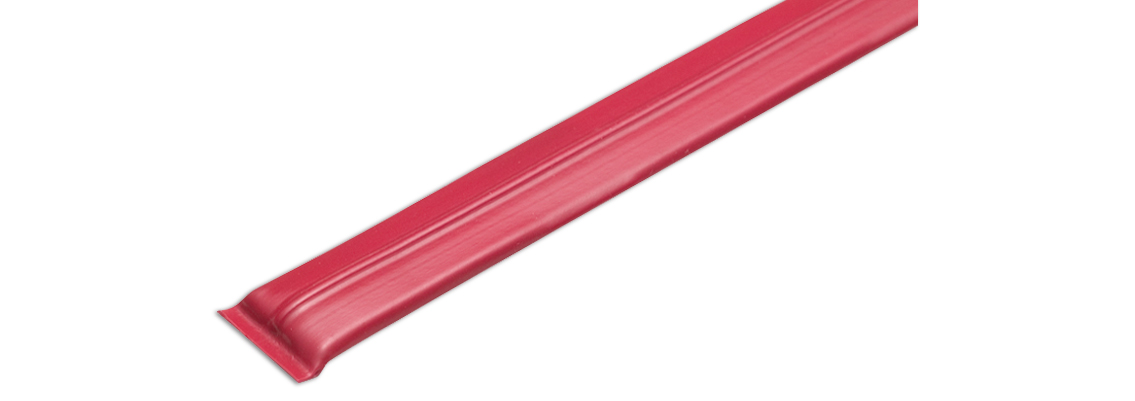

Ribbon Switches 180 & 180-S With Special Physical Properties


Ribbon switches with a patented snap-action design that operates when flexed at any point.

These ribbon switch types differ in actuation force and color:
8 oz. for Type 180, color red,
16 oz. for Type 180-S, color orange.

Length is cut to customer requirements.

Options
•   Custom switch lengths
•   Custom lead lengths
•   Fail-Safe leads
•   Air leak test
•   Adhesive backing
Custom colors are available on request. Please contact the factory.


Ribbon Switch Type Aluminum Channel DA-32 Double-Faced Tape
180 No Yes
180-S No Yes

Actuation Force: 8 oz. (2 N) for Type 180
16 oz. (4 N) for Type 180-S
Bending Radius: 10° to 15° bend actuates
Exterior Covering: PVC
Color: Type 180, Red only
Type 180-S, Orange only
Lead Wire: #22 AWG, 18 in. (460mm) long
Dimensions: 9/16 in. wide, 5/32 in. high (14.3 mm x 4.0 mm)
Recommended Voltage & Current: 24 VAC or VDC at 1 amp max.
Dielectric Resistance: 1000 VAC for 2 minutes
