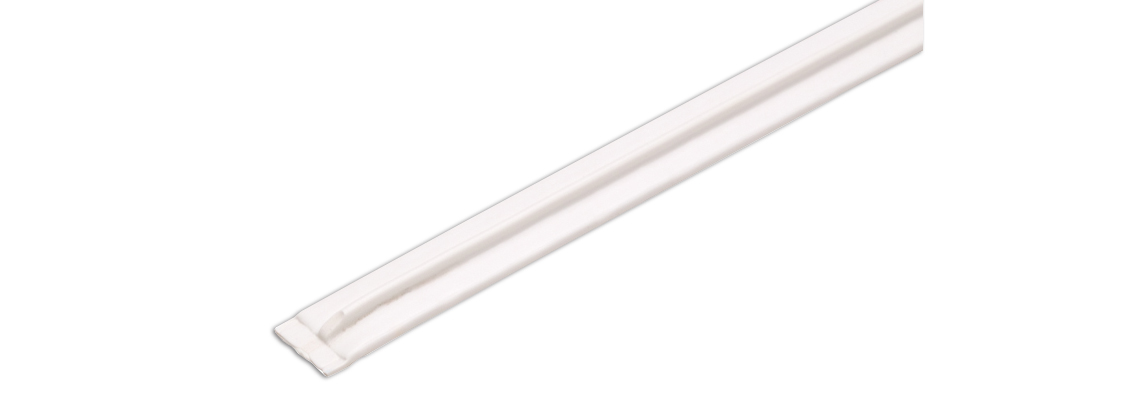

Tapeswitch Corp. - Ribbon Switch Type 141-BPM

General purpose ribbon switches designed for activation by hand, foot, or mechanical device. These switches have a PVC exterior.

Actuation force is 8 oz. (2 N)

Mounting is by aluminum channel or double-faced tape.
Length is cut to customer requirements.

Note: All ribbon switches can be supplied with a black TPE exterior for enhanced moisture and chemical resistance. Add "E" to the type designation, e.g., 141-BPME, to specify.

Options
• Custom switch lengths
• Custom lead lengths
• Fail-Safe leads
• Air leak test
• Adhesive backing
• Interconnected switches (sausage style)
Custom colors are available on request. Please contact the factory.

WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov

Ribbon Switch Type	Style 104 Aluminum Channel	DA-32 Double-Faced Tape
141-BPM	Yes	Yes

Actuation Force:	8 oz. (2 N)
Bending Radius:	1/2 in. (12 mm) minimum
Exterior Covering:	PVC (standard) or TPE (optional)
Color:	white
Lead Wire:	#22 AWG, 18 in. (460 mm) long
Dimensions:	9/16 in. wide, 7/32 in. high (14.3 mm x 5.5 mm)
Recommended Voltage & Current:	24 VAC or VDC at 1 amp max.
Dielectric Resistance:	1000 VAC for 2 minutes
