Ribbon Switch Type 131

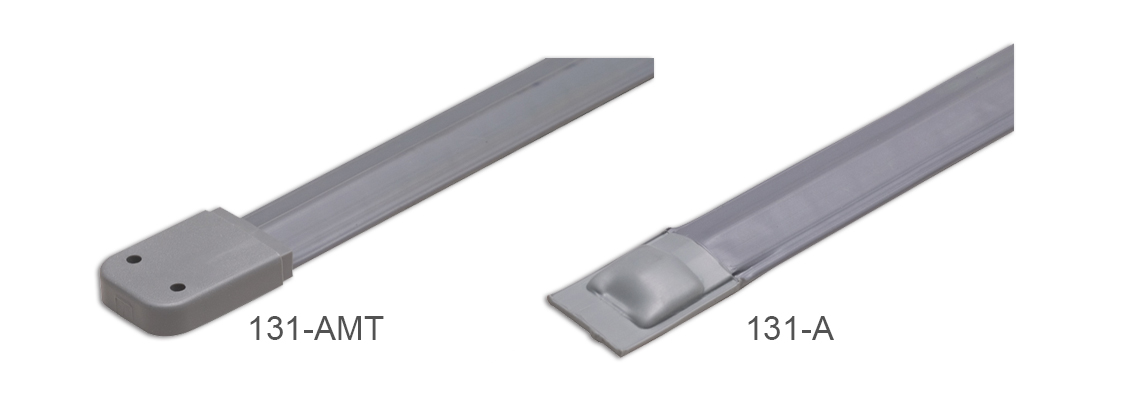

General purpose ribbon switches designed for activation by hand, foot, or mechanical device. Available with sleeve ends or with block ends that have mounting holes (MT types). Block ends can have wire exiting from the end or back.

Actuation force 60 oz. (17 N), color light grey.

Length is cut to customer requirements.

Note: All ribbon switches can be supplied with a black TPE exterior for enhanced moisture and chemical resistance. Add "E" to the type designation, e.g., 131-AMTE, to specify.

Options
•   Custom switch lengths
•   Custom lead lengths
•   Fail-Safe leads
•   Air leak test
•   Adhesive backing
•   Interconnected switches (sausage style)

Custom colors are available on request. Please contact the factory.


Ribbon Switch Type Style 106 Aluminum Channel DA-12 Double-Faced Tape Screws in Block Ends
131-A Yes Yes No
131-AMT Yes Yes Yes

Actuation Force: 60 oz. (17 N) (10 mm Sphere)
Bending Radius: 1 in. (25 mm) minimum for Type 131
Exterior Covering: PVC
Color: Light Grey
Lead Wire: #18 AWG, 18 in. (460 mm) long (Standard)
Dimensions: 3/4 in. wide, 3/16 in. high (19.1 mm x 4.8 mm )
Recommended Voltage & Current: 24 VAC or VDC at 1 amp max.
Dielectric Resistance: 1000 VAC for 2 minutes
