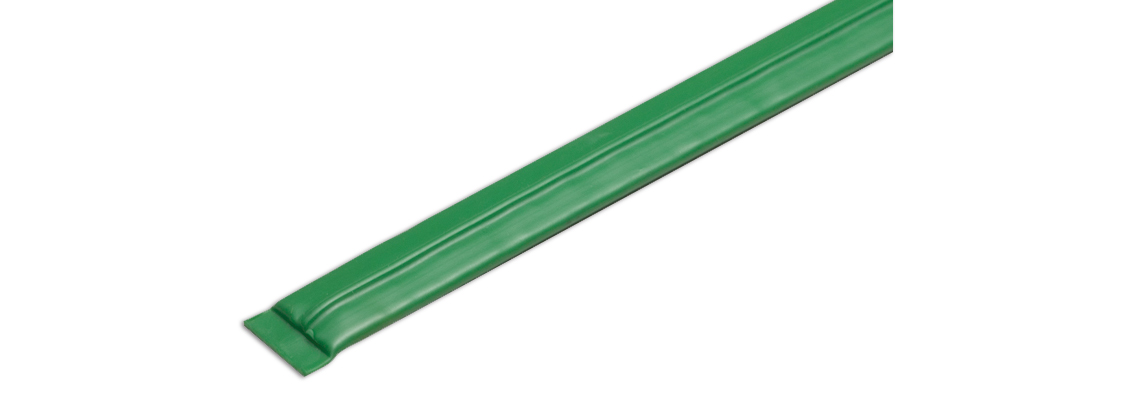

Ribbon Switch Type 121-BP


General purpose ribbon switches designed for activation by hand, foot, or mechanical device. These switches have a PVC exterior.

Actuation force is 8 oz. (2 N)

Mounting is by aluminum channel or double-faced tape.
Length is cut to customer requirements.

Note: All ribbon switches can be supplied with a black TPE exterior for enhanced moisture and chemical resistance. Add "E" to the type designation, e.g., 121-BPE, to specify.

Options
•   Custom switch lengths
•   Custom lead lengths
•   Fail-Safe leads
•   Air leak test
•   Adhesive backing
•   Interconnected switches (sausage style)
Custom colors are available on request. Please contact the factory.



WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov

Ribbon Switch Type Style 104 Aluminum Flat Channel DA-32 Double-Faced Tape
121-BP Yes Yes

Actuation Force: 8 oz. (2 N)
Bending Radius: 1/2 in. (12 mm) minimum
Exterior Covering: PVC (standard) or TPE (optional)
Color: light green or black
Lead Wire: #22 AWG, 18 in. (460 mm) long
Dimensions: 9/16 in. wide, 5/32 in. high (14.3 mm x 4.0 mm)
Recommended Voltage & Current: 24 VAC or VDC at 1 amp max.
Dielectric Resistance: 1000 VAC for 2 minutes
