Ribbon Switch Type 101

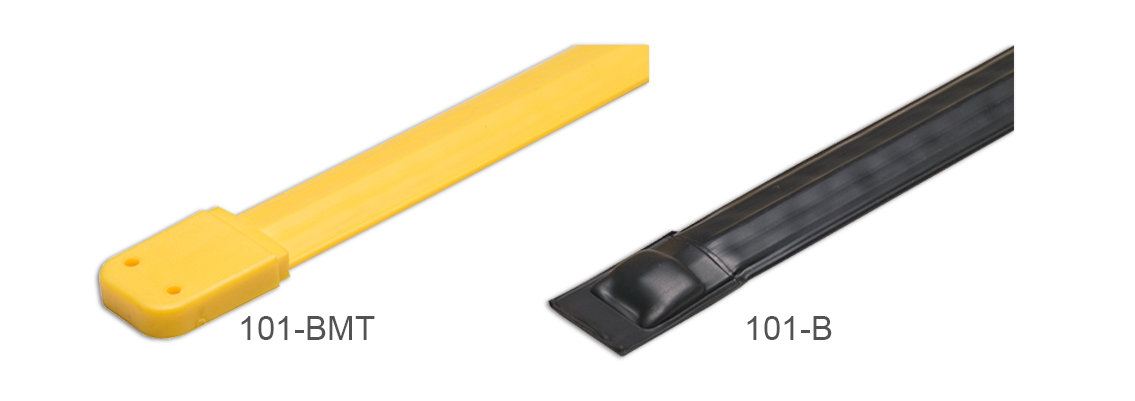

General purpose ribbon switches designed for activation by hand, foot, or mechanical device. Available with sleeve ends or with block ends that have mounting holes (MT types). Block ends can have wire exiting from the end or back.

Actuation force 24 oz. (7 N), in colors yellow or black.

Length is cut to customer requirements.

Note: All ribbon switches can be supplied with a black TPE exterior for enhanced moisture and chemical resistance. Add "E" to the type designation, e.g., 101-BMTE, to specify.

Options
•   Custom switch lengths
•   Custom lead lengths
•   Fail-Safe leads
•   Air leak test
•   Adhesive backing
•   Interconnected switches (sausage style)

Custom colors are available on request. Please contact the factory.


Ribbon Switch Type Style 106 Aluminum Channel DA-12 Double-Faced Tape Screws in Block Ends
101-B Yes Yes No
101-BMT Yes Yes Yes

Actuation Force: 24 oz. (7 N) (10 mm Sphere)
Bending Radius: 2 in. (51 mm) minimum
Exterior Covering: PVC
Color: Yellow or Black
Lead Wire: #18 AWG, 18 in. (460 mm) long (standard)
Dimensions: 3/4 in. wide, 3/16 in. high (19.1 mm x 4.8 mm )
Recommended Voltage & Current: 24 VAC or VDC at 1 amp max.
Dielectric Resistance: 1000 VAC for 2 minutes
