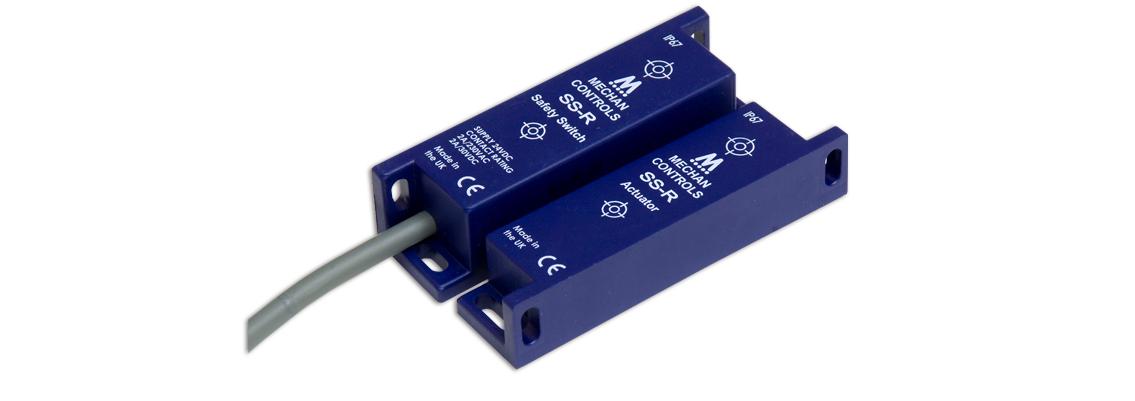

The SS-R Safety switches are electronic, non-contact safety switches. The unique electronic switching provides additional security and a single switching point leading to a more reliable and secure long term safety switching solution.
The SS-R switch is pre-wired with 5 or 10M of cable and has a dual color LED and an additional volt free contact for indication, to clearly show the guard status. The SS-R is fully encapsulated to IP67 and is suitable for use in wet , washdown or dusty areas. Its slim-line package and 10mm switching distance makes the SS-R easy to fit to most guarding systems. With 2 x N/O and 1 x N/C contact the SS-R is ideal for use with most safety relays where category 3 or 4 performance is required for a safety application.
|Power Supply:||24 VDC|
|Power Consumption:||2 VA|
|Safety Contacts / Rating:||2 N/O, 2 A / 230 VAC, 2 A / 30 VDC|
|Auxiliary Contact / Rating:||1 N/C, 2 A / 230 VAC, 2 A / 30 VDC|
|Operating Temperature:||-10 to 55°C|
|Housing:||ABS Case, Blue, Resin Filled|
|Mounting:||Target to Target|
|Switching Distance:||7 mm ON, 12 mm OFF|
|Indication:||Dual Color LED; RED Open, Green Closed|
|Approval:||UL Approved 508 Industrial Control Equipment|
