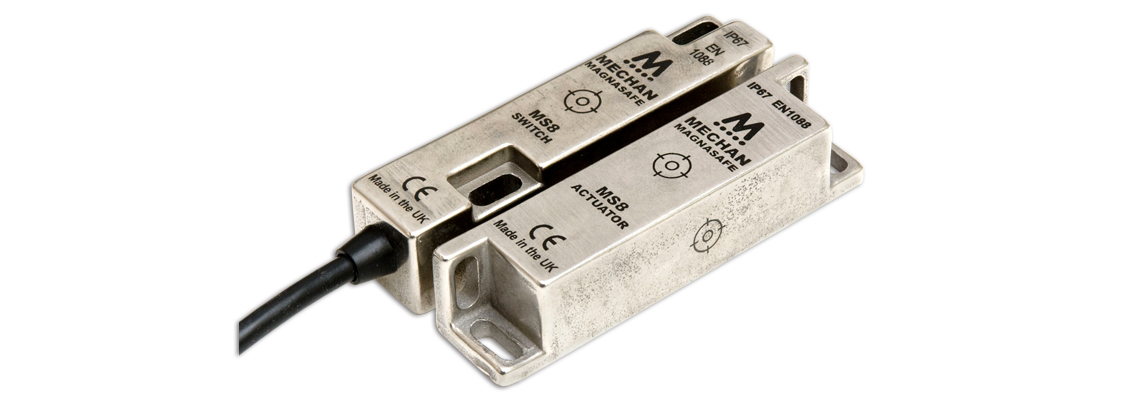

Magnasafe MS-8 Safety Switch



The MS8-SS SLIM-LINE IP67 safety switch can be operated from 3 sides, enabling an easy installtion to all sorts of sliding, lift off and hinged guards. The small footprint with 2 safety contacts and 1 indicator contact is suitable for use with a variety of low inrush current safety switches. The MS8 is easy to integrate and being non-contact it has no mechanical parts.

Features
•   Slim Line non-contact safety switch
•   316 Grade Stainless Steel
•   Up to 2 x Safety contacts, 1 x Auxiliary contact
•   DC switching
•   0.4 amp switching


Operation: Magnetic
Contacts: 2 Normally Open + 1 Normally Closed
Operating Distance: 10 mm ON, 30 mm OFF
Contact Rating: 0.4 amp / 24 VDC
Operating Temperature: -10 to 55°C
Construction: 316 Grade Stainless Steel, Resin filled
IP Rating: IP67
Mounting: Target to Target
Cable Lengths / Connector: Standard: 3, 5 and 10 M, Longer available to order
Quick Dsiconnect: M12, 6 Pole Connector. Cables 5 or 15 M script
Features: Operation on three sides
Tolerant to misalignment
Suitable for wet / washdown areas
Approvals: UL 508 Industrial Control Equipment, CE
