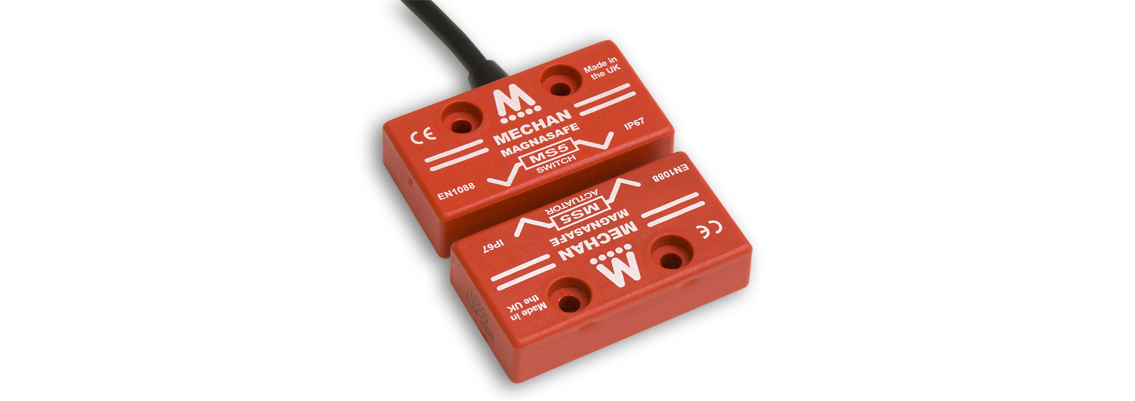

The MS5 is a low cost, compact, IP67 safety switch, with 2 safety contacts and 1 indicator contact, the MS5 is suitable for use with most modern, low in-rush current, safety relays. Easy to install, and ideal where space is limited on small light weight guards, The design of the MS5, with the fixing centers through the body of the switch, makes it a tough little safety switch which can withstand regular use in harsh conditions.
Available for DC switching, the MS5 is easy to integrate into most safety applications. Being a non-contact safety switch it has no mechanical parts to wear or break, and will provide a long term reliable solution to safety switch problems.
Features
• Magnetic non-contact safety switches
• UL Approved
• Compact Housing, 22 mm Fixing
• 2 x Safety contacts, 1 x Auxiliary contact
• 300 mA switching
| Operation: | Magnetic |
| Contacts: | 2 Safety, 1 Auxiliary |
| Contact Options: | MS5-21 2 N/O 1 N/C |
| Operating Distance: | 6 mm ON, 17 mm OFF |
| Contact Rating: | 300 mA, 24 VDC |
| Operating Temperature: | -10 to 55°C |
| Construction: | ABS or 316 Grade Stainless Steel, Resin filled |
| IP Rating: | IP67 |
| Mounting: | Target to Target |
| Cable Lengths / Connector: | Standard: 3, 5 and 10 M, Longer available to order Quick Dsiconnect: M12, 6 Pole Connector. Cables 5 or 15 M script |
| Features: | Non-contact safety switching, tolerant to misalignment No mechanical wear |
| Approvals: | UL 508 Industrial Control Equipment, CE |
