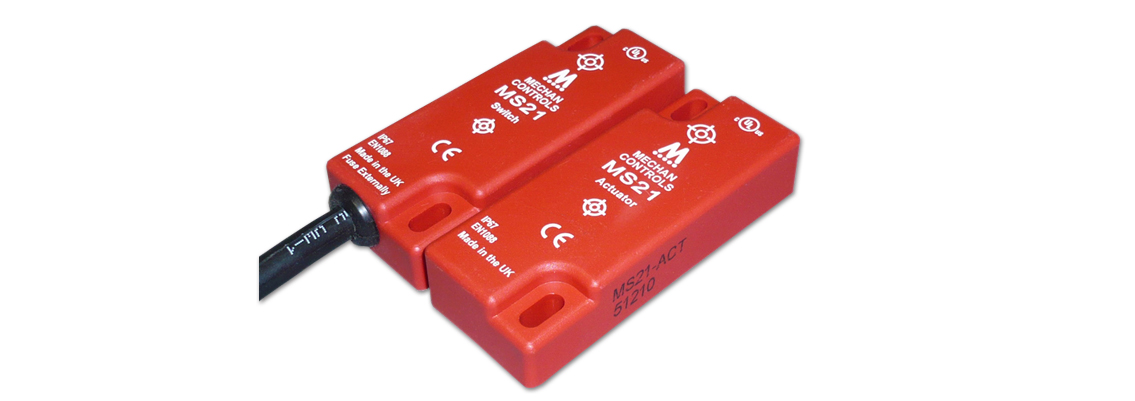

Magnasafe MS-21 Safety Switch



The MS21 is robust IP67 magnetic safety switch. With up to 2 safety contacts and 1 indicator contact, capable of switching most safety relays, the MS21 is ideal for non contact safety applications. Available in both AC or DC switching versions, the MS21 is easy to integrate and being non contact, it has no mechanical parts.

Features
•   Robust, harsh environment
•   Magnetic safety switch
•   Non-contact safety switch reliability
•   UL Approved
•   Up to 2 x Safety contacts
•   Optional 1 x Auxiliary (indicator) contact
•   AC or DC switching
•   Up to 2 amps switching


Operation: Magnetic
Contacts: Max. 2 Safety 1 Auxiliary contacts
Operating Distance: 10 mm ON, 30 mm OFF
Safety Contact Rating: AC = 2 amps, DC = 1 amp
Operating Temperature: -10 to 55°C
Construction: 316 Grade Stainless Steel or ABS, Resin filled/td>
IP Rating: IP67
Cable Lengths / Connector: 3 and 6 M, Longer to order
Features: Dual Safety Contacts, Indicator Contact
Non-contact switching, tolerant to misalignment
Suitable for wet / washdown areas
Approvals: UL 508 Industrial Control Equipment, CE
