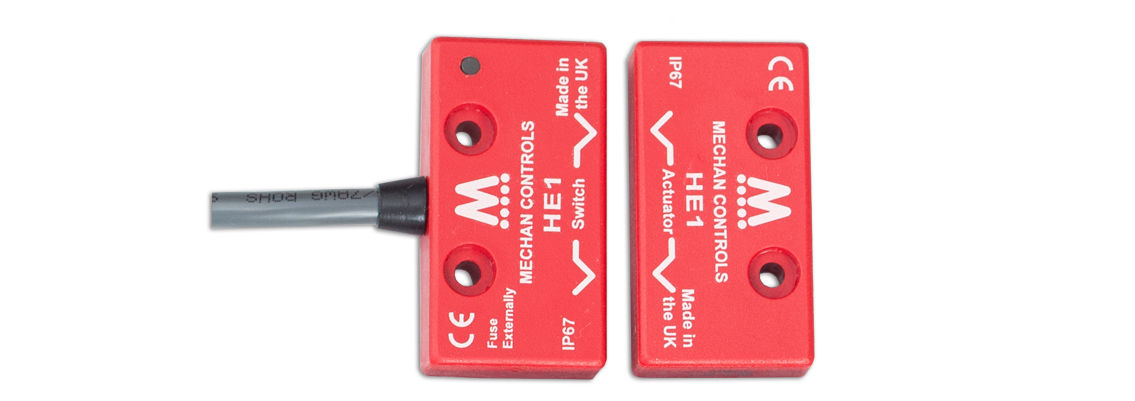

HE1 Series Non-Contact Safety Switch Interlocks



The HE1 Series Non-Contact Safety Switch Interlocks are the smaller latest coded magnetic non-contact switches featuring solid state, single point switching for single or multi-gate machine guarding a CAT 4, SIL 3 PLe safety performance level fully encapsulated in ABS or stainless steel resin filled housing. The solid state design is even more tolerant to shock and vibration, and provides single point switching which makes for a simpler and more reliable machine guard interlock. The HE safety switch has 2 x N/O + 1 N/C bi-directional solid state outputs along with built in LED(s) for indication.


Operation: Coded Non-contact
Contact Arrangements: 2 x N/O + 1 x N/C
Safety Contact Operating Distance: 7 mm ON / 12 mm OFF
Safety Contact Rating: DC: 24 Vdc / 400 mA
Auxiliary Contact Rating: DC: 24 Vdc / 400 mA
External Fusing ( When not using SCU-1 ): 400 mA
IP Rating: IP67
Cable Length: 100 Meters max
Operating temperature: -25°C to +55°C
Storage temperature: -25°C to +55°C
Mounting: Target to target
Construction: Red ABS Resin Filled or 316 Grade Stainless Steel resin Filled
