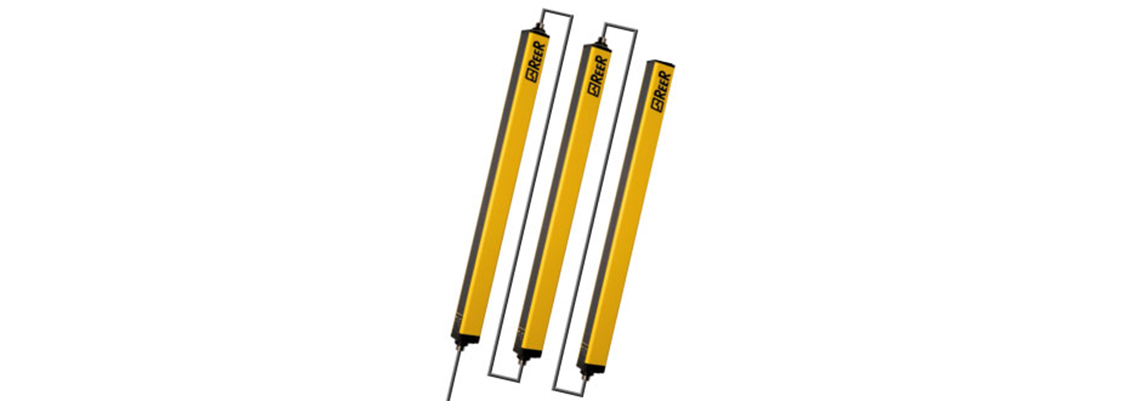

EOS4 XS - XM - XS2 Master/Slave Models With Built-in Control Functions


Master/Slave models with built-in control functions

Master, Slave models permit series connection of up to three light curtains and combined detection of hand and presence of a person or of more sides of the machine, with the following major benefits:

• A single pair of safety outputs
• No interference between light curtains installed adjacent to one another

Integrated selectable manual or automatic Start/Restart.


Degree of protection: IP 65 - IP 67
Operating temperature (°C): From -30 to 55 for all models with range up to 12 m
From -20 to 55 for 14 mm resolution models
Power supply (VDC): 24 ± 20%
Response time (ms): See the technical manual
Signalling: LEDs for light curtains status and diagnostic
Safety outputs: 2 PNP - 400mA at 24 VDC with protection against short circuit, overload and reverse polarity
Height of controlled area (mm): 160 ... 2260
Operating Range (m): 0 ... 6 low range - 14 mm resolution models
1 ... 6 high range - 14 mm resolution models
0 ... 4 low range - All other models
0 ... 12 high range - All other models
