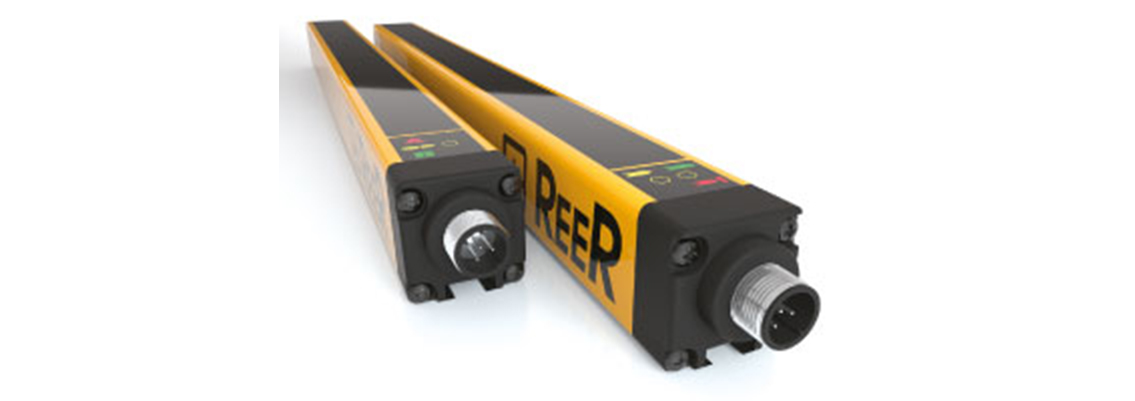

EOS4 X - With Built-in Control Function


EOS4 X - With built-in control function

Built-in, selectable manual/automatic Start/Restart.
Feedback input for external relays monitoring (EDM).
Two safety PNP static outputs, auto-controlled.
Unshielded cables up to 100 meter long.
An effective light curtain for directly controlling and monitoring machine circuits with no need of external safety modules.
Muting functions through external AD SRM interface, Mosaic or Safety PLC.


Degree of protection: IP 65 - IP 67
Operating temperature (°C): From -30 to 55 for all models with range up to 12 m
From -20 to 55 for 14 mm resolution models
Power supply (VDC): 24 ± 20%
Response time (ms): 2,5 ... 20
Signalling: LEDs for light curtains status and diagnostic
Safety outputs: 2 PNP - 400mA at 24 VDC with protection against short circuit, overload and reverse polarity
Height of controlled area (mm): 160 ... 2260
Operating Range (m): 0 ... 6 low range - 14 mm resolution models
1 ... 6 high range - 14 mm resolution models
0 ... 4 low range - All other models
0 ... 12 high range - All other models
