TS-108 & TS-109 Sensing Edges

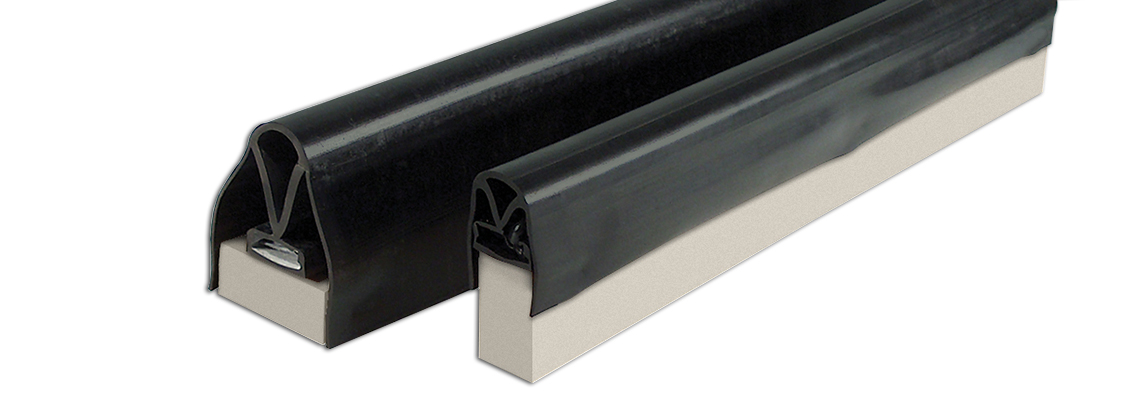

Tapeswitch™ TS-108 & TS-109 Pressure Sensitive Sensing Edges are designed for mounting directly on door or stage edges without using channel. They have side activation and about 50% overtravel cushioning. The TS-109 fits edges from ¾ in. to 1¼ in. and the TS-108 fits edges from 78 in. to 2¼ in. thick.

The EPDM rubber housing is rugged and weatherproof. The sealed ribbon switch sensing element is rated for million operations across surface, and is field replaceable, just in case. All TS-108 and TS-109 Sensing Edges are supplied with 4-conductor Fail-Safe wiring and are compatible with Tapeswitch™ Safety Interface Modules.

Features & Benefits
•   Self-mounting eliminates need for channel
•   Side activation maximizes protection
•   Replaceable switching element simplifies maintenance
•   4-conductor Fail-Safe wiring is standard
Typical Applications
•   Obstruction detection on power driven doors, gates, and partitions
•   Pinch point protection on stage lifts and scenery elevators
•   General residential and commercial safety and sensing applications

Actuation Force: 6 lbs (27 N) nominal
Overtravel: 1.0 in. (25 mm) after activation
Recommended Voltage & Current: 28 VAC or VDC at 1.0 amps max.
Lead Wiring: 2 x 20/2 AWG, Dri-Run, 72 in. long, 316 in. dia.
Exterior Housing: Santoprene TPE
Available Lengths: 6 in. to 9 ft.
Mounting Options: PVC snap-in channel
