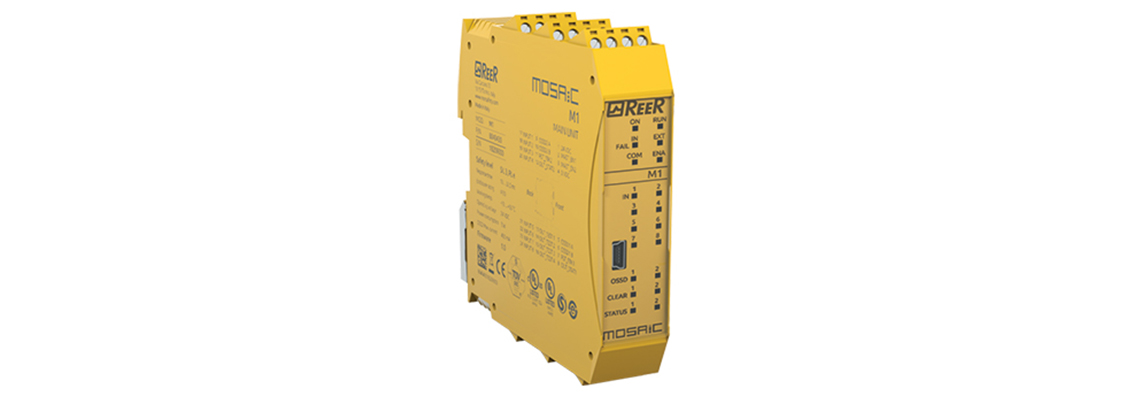

Mosaic M1 & M1S Master Control Units


M1 Standard master unit

Master unit, also usable as a stand-alone device, able to control any other expansion unit

  • 8 digital inputs
  • 2 inputs for Start/Restart interlock and external device monitoring (EDM)
  • 2 pairs OSSD (PNP 400 mA)
  • 2 status outputs (PNP 100 mA)
  • 4 test outputs

Not compatible with the following expansion modules: MA4, MI8O4, MO4L

M1S Enhanced master unit

Master unit, also usable as a stand-alone device, able to control any other expansion unit
  • 8 digital inputs
  • 4 inputs for Start/Restart interlock and external device monitoring (EDM)
  • 4 single OSSD or 2 pairs (PNP 400 mA)
  • 4 status outputs (PNP 100 mA)
  • 4 test outputs

Compatible with all expansion modules


MOSAIC M1
Safety level (SIL / PL) SIL 3 - SILCL 3 according to IEC 61508 - IEC 62061 / PL e - Cat. 4 according to ISO 13849-1
Power supply (VDC) 24 ± 20%
Connections Removable terminal blocks, screw contacts
Safety inputs 8
Safety relay outputs -
Safety outputs 2 pairs PNP - 400mA at 24 VDC with protection against short circuit, overload and reverse polarity
CCF (ISO 13849-1) 80%
system MTTFd (ISO 13849-1) years 30 ÷ 100
PFHd (IEC 61508) 6.86E-9
Degree of protection IP 20 for housing - IP 2X for terminal block
Storage temperature (°C) From -20 to +85
Operating temperature (°C) From -10 to 55
Programmable signalling outputs 2 PNP - 100mA
Test outputs 4
Start/Restart inputs and EDM 2
LED signalling Input/output status and fault diagnostics
USB input Yes
Housing for MCM Yes
MSC connector provided No
Connection with MSC BUS Yes
Dimensions HxWxD (mm) 108 x 22,5 x 114,5
Fastening Rail fastening according to EN 50022-35 standard
Packaging dimensions W x H x L (mm) 160 x 135 x 60
Gross weight (Kg) 0,26
