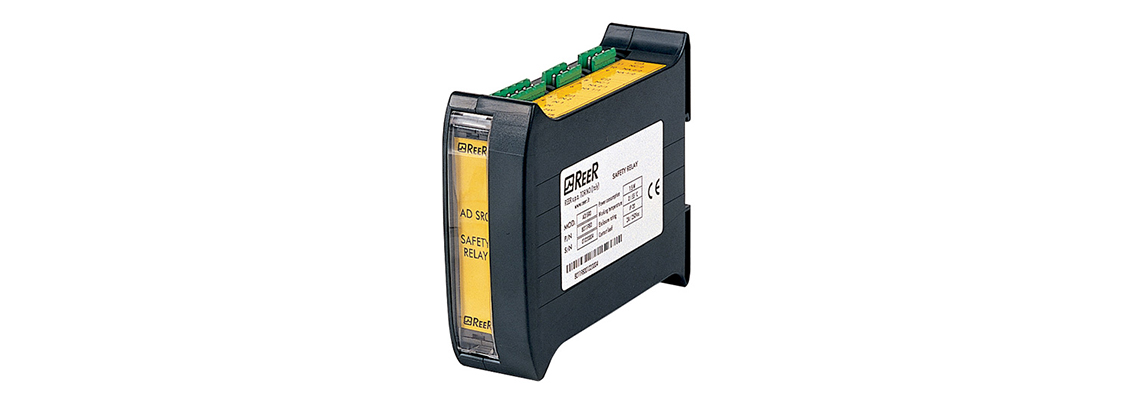

ReeR AD SR0 Control Unit


Relay module
Safety ralays outputs 2 N.O. + 1 N.C. - 2A 250 VAC


Family Safety relay modules
Code 1330902
Connections Terminal blocks
Power supply (VDC) 24 ± 20%
Response time (ms) <= 20
Safety relay outputs 2 N.O. + 1 N.C. - 2A at 250 VAC
Degree of protection IP 2X
Operating temperature (°C) From 0 to 55
Dimensions HxWxD (mm) 101 x 35 x 120
Fastening Quick mounting on bar according to standard EN 50022-35
Safety barriers to be connected 1
